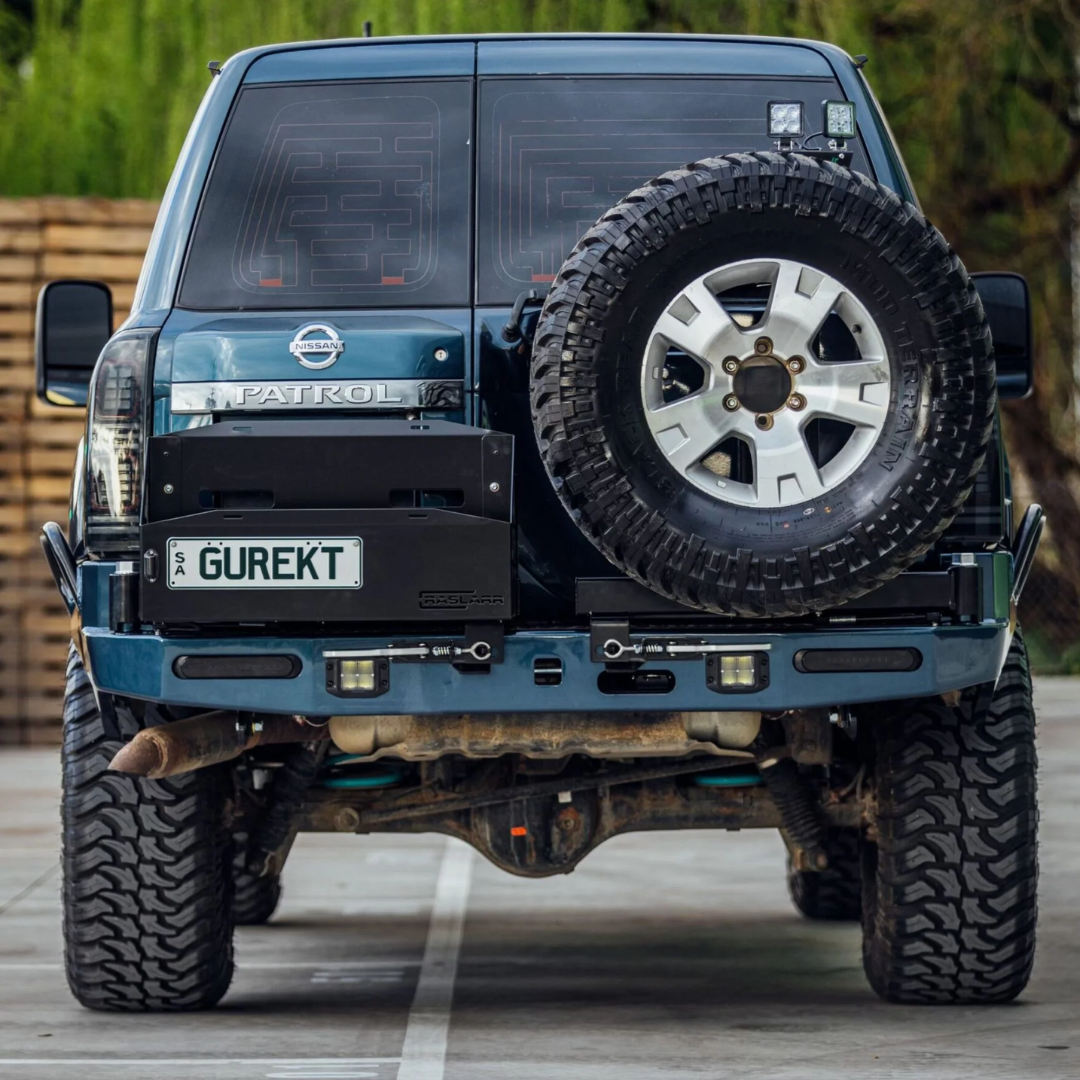

GU Series 1-4 Nissan Patrol Rear Bar V2 (Super High Clearance)

• Suits: All Series
• Will not fit body lift vehicles.
• Not compatible with DX models, unless they have flares fitted.

• Comes standard with incorporated tow bar for 3,500 tonne (please note some model GU's have a lower towing capacity), with 350kg ball weight
• This is a new design for the GU Patrols, which were designed to be super high clearance.
• Black checker top as standard.
• The main section of the rear bar is constructed from 6mm steel
• The wings are constructed from 4mm steel.
• 6mm braces back to the chassis, with provision for mounting mudflaps.
• Side hoops available for an optional extra.
• Comes standard with new square, flush-mount reverse lights
• Comes with new Road Vision stop/tail lights
• Comes standard with stubs.
  • Rear bars cannot be made without stubs.
  • When ordering a rear bar with no carriers, this will come standard with stub covers.
• The carrier hub also has an incorporated stopper to provide further reassurance when opening the carrier.
• Comes standard with our in-house, Australian made, fully adjustable stainless and billet combination latches, paired with CNC machined joints running a roller bearing to allow for smooth operation.
• The wheel carrier can fit up to dual 35” tyres
• Dual jerry can holders available
  • All jerry’s are aluminium and come standard in our modular style (bolt on to a base arm).
• Comes standard sandblasted, zinc primed & satin black powder coated

Shipping and Fitting Information

To arrange your shipping, please contact Legendex by phone at 07 3523 6413. Note that we can only ship this product to a commercial address. If a residential address is provided, we will contact you to request a commercial address. Alternatively, we can arrange delivery to the nearest depot based on your preference. Since the product ships from Melbourne, please be aware that store pick-ups in Brisbane will incur a freight fee

Legendex offers a professional fitting service at our head office; please call to discuss a fitted price for your Raslarr bullbar.

Colour Coding

The Bull Bar comes standard sandblasted, zinc primed and powder coated in a satin black.
We can have the bar colour matched to your vehicle, we will require an image of your VIN-PLATE to do so (We will contact you if you have selected colour coding).

Time Frame

This product is made to order. Once the order is placed, production will commence, and therefore, it cannot be cancelled or refunded.
