Note: Price includes Full Fitting and Approval at our Workshop in Narangba. This kit can only be fitted in-house and can not be sent out for remote fitting.

Please do not proceed with the purchase if you are unable to have the vehicle presented to the Narangba Workshop.

Suzuki Jimny JB74 2019 on

Carry more safely and legally

When it comes to Suzuki Jimny GVM upgrades, the advertised payload capacity on most modern 4WDs might appear impressive at first, but it often diminishes rapidly once you factor in accessories, equipment, and passengers.

Staying within your vehicle's Gross Vehicle Mass (GVM) limit may seem like a daunting challenge. Fortunately, Tough Dog Suspension is a recognized Second Stage Manufacturer (SSM) with the expertise to develop and federally certify components that can significantly boost your Suzuki Jimny's GVM.

By choosing our GVM upgrade kits, you can maximise your allowable payload capacity without compromising your vehicle's roadworthiness. Rest assured that each GVM kit undergoes rigorous testing to ensure compliance with Australian Design Rules (ADR). Upgrade confidently and unlock the full potential of your Suzuki Jimny.

Safety and performance by design

Federal approval for GVM upgrades requires rigorous testing to ensure that the vehicle performs as well or better than when it left the original manufacturer.

You can be sure that your Tough Dog GVM-equipped 4WD will stop and handle well, even with the increased load on board.

The Gross Vehicle Mass (GVM) is the manufacturer's specified maximum weight in kilograms that a vehicle can bear when fully loaded. With Tough Dog GVM upgrades, your Suzuki Jimny can be officially certified to handle a higher payload than what the original manufacturer intended, all while remaining fully compliant with relevant Australian Design Rules (ADR) and legal requirements.

When it comes to upgrading your Suzuki Jimny's GVM, you have two options based on the vehicle's registration status. If your vehicle has never been registered, you can pursue Federal approval. Our comprehensive Tough Dog GVM kit includes an additional compliance plate that will be securely affixed to your vehicle.

For already registered vehicles, the Federal compliance data is utilized in conjunction with a thorough inspection by an authorized State engineer to grant certification for the increased GVM capacity.

Upgrade your Jimny GVM to 1800KG

Suspension Lift: With the 100kg constant rear load required for this kit the average lift increase is 40mm. Lift will vary relative to the payload of the vehicle at the time.

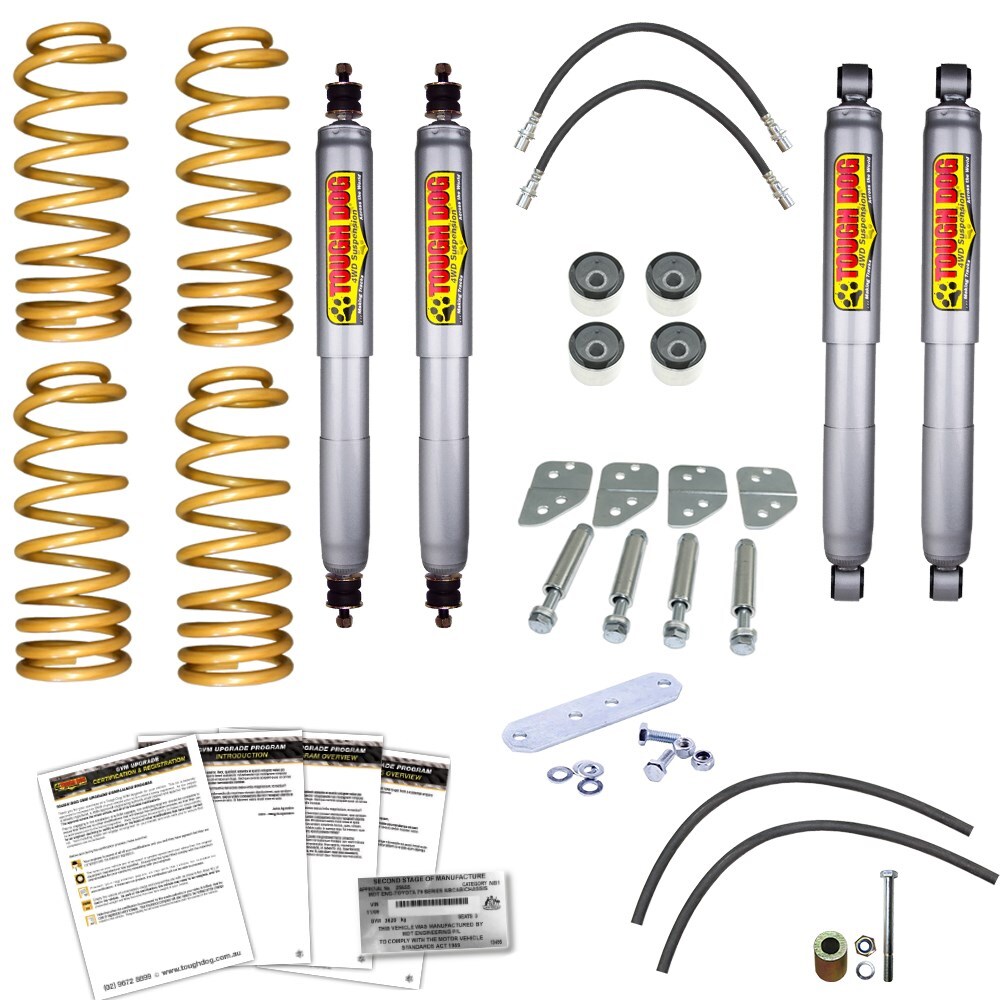

The Kit includes

• 4x Foam Cell Shocks
• 4x Coil Springs
• 1x Brake Hose Kit
• 1x Caster Correction Kit
• 1x Crossmember Drop Kit
• 1x Headlight Module Bracket
• 1x ABS Relocation And Vacuum Hose Kit
• Fitment Instruction Pack:
  • Tyre Pressure Placard
  • Load Capacity label
  • Owner’s Manual Supplement
  • Installation Instruction Guide
  • Verification & Pathway docs. (Post-Reg. only)
  • Warranty Glovebox Card
  • SSM Secure Vehicle Identification marking (Pre-Reg. only)
