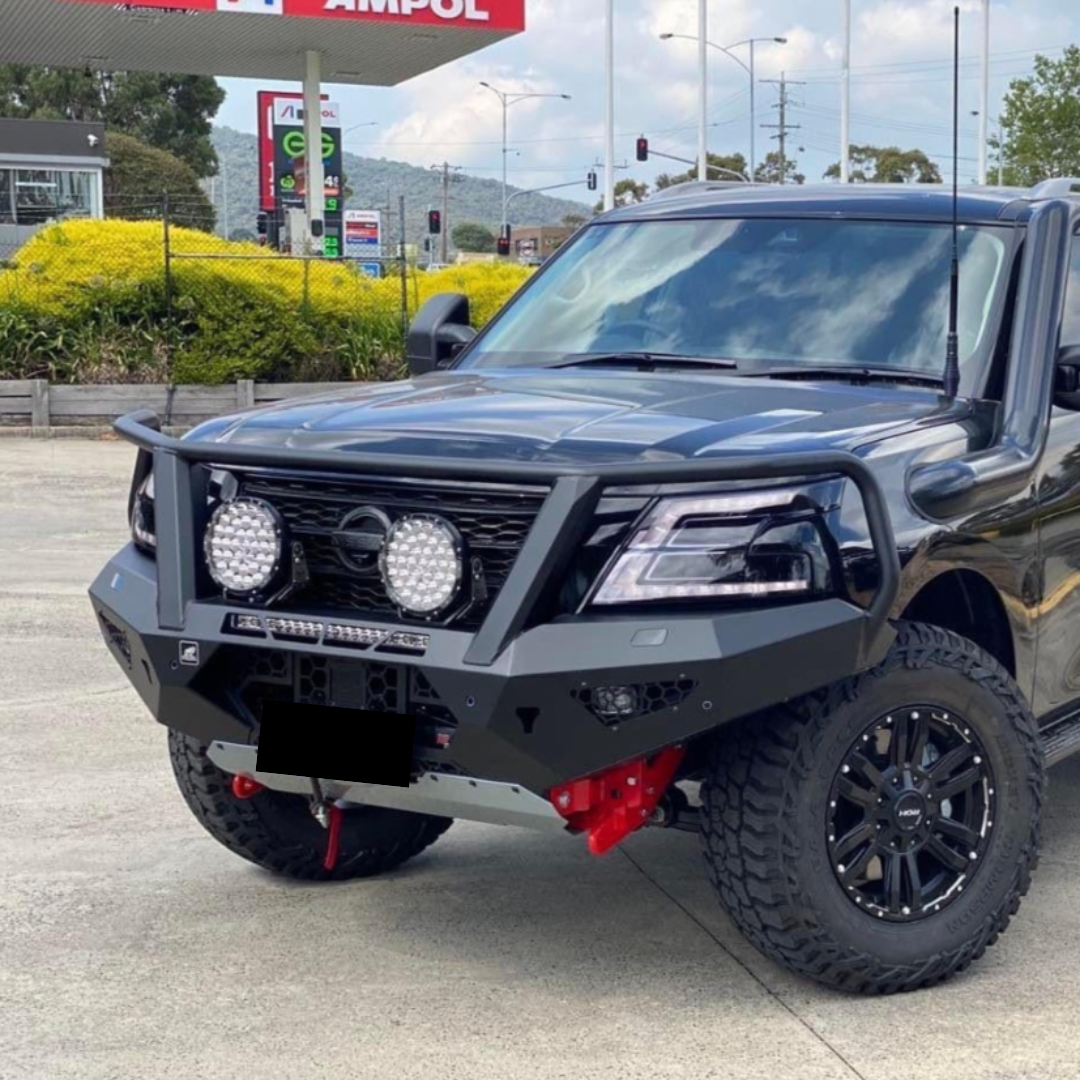

The S5 Patrol finally looks good.  No offense to Nissan but the older Y62 models didn't quite have a tough look about them.  But the Series 5 fixed that with a much improved front end. Well the Toro bar from Offroad Animal makes it look even better. You can give a serious face lift to your Patrol and give it that cool aggressive look that will make you smile every time you look at it.  Not only does this bar look the part but it's super functional as well.  A great platform for a winch and lights and does the job of protecting the front from Animal strikes and offroad mishaps.

This bar suits Series 5 Y62 TI patrols from MY19 on, TI-L requires a few nutserts to be installed

MY22 vehicles requires grille cut

Benefits

  • Full steel construction for ultimate protection, one piece construction.
  • Much improved approach angle over factory bumper and all competitors
  • Great platform for mounting a winch
  • Ability to mount winch without removing the whole bar (great for winch servicing)
  • Great platform for mounting lights or antennas
  • Works with all parking sensors and Adaptive cruise, and Autonomous Emergency braking features.
  • Looks awesome on the front of your Patrol
  • Much lighter bar compared to main competitors due to our much smarter design

Features

  • ADR compliant
  • Airbag compatible
  • Works with parking sensors, and Adaptive Cruise Radar
  • Works with factory head light washers
  • Welded one piece bar with welded wing supports for super toughness
  • Zinc plated then powder coated Matte black as standard
  • Hi lift jacking points integrated into design as standard
  • Suits most winches with no extras required including Warn Zeon winch
  • Factory fog lights relocate into the bar
  • Number plate flip included as standard for those running a winch
  • Can be colour coded to vehicle
  • Heavy duty steel recovery points included as part of the mounts
  • 2" welded hoops for serious animal protection
  • Included as standard is Rated 20mm steel recovery points included as part of mounts, each point is rated to 4500kg

While the bumper takes most single row led light bars (we suggest the Offroad Animal 22" LED light bar)

Included in box

  • 1 x Front bar weldment
  • 1 x LH chassis impact bracket
  • 1 x RH chassis impact bracket
  • 1 x mesh fairlead mount
  • 1 x Mesh infill LH
  • 1 x Mesh infill RH
  • 1 x Light cover Mesh LH
  • 1 x Light cover Mesh RH
  • 1 x centre bash plate
  • 1 x under wing panel LH
  • 1 x under wing panel RH
  • 1 x winch control box bracket
  • 1 x number plate flip
  • 1 x ACC mount
  • 1 x ACC Cover
  • 1x Length of head light washer hose
  • 4x hose clamps
  • 2x Antenna mounts
  • A butt load of nuts and bolts to make it all sit nice and pretty

The calculated shipping price at checkout is for Metro Brisbane, Sydney, Melbourne, Adelaide, and Hobart.  If you are out of these areas either contact us for a freight quote or we will call you prior to shipping for the extra charge. Please also be aware that we can ship this product exclusively to a commercial address. If a residential address is provided, we will reach out to request a commercial address. Alternatively, we can arrange for delivery to the nearest depot upon your preference.

SKU FB-NPA-S5-20-TOR-ASM0
Brand Offroad Animal
Shipping Weight 77.0000kg
Shipping Width 2.220m
Shipping Height 0.740m
Shipping Length 0.900m
Shipping Cubic 1.478520000m3
